Deep Dive into AL Debugging: A Complete Developer’s Guide

28 September 20256 min read

Debugging is one of the most critical skills for any AL developer working with Microsoft Dynamics 365 Business Central. Whether you’re troubleshooting complex business logic, investigating performance issues, or debugging web services, having a deep understanding of AL debugging capabilities can significantly improve your development efficiency and code quality.

In this comprehensive guide, we’ll explore the full spectrum of AL debugging features, from basic breakpoints to advanced snapshot debugging techniques.

Understanding Debugging Limitations

Before diving into debugging techniques, it’s crucial to understand the limitations that govern AL debugging in Business Central.

External Code Debugging Restrictions

One of the most important limitations to be aware of is that “External code” can only be debugged if the code has the allowDebugging flag set to true. This means that when working with extensions from other publishers or Microsoft’s base application, you’ll only be able to step through code that explicitly permits debugging.

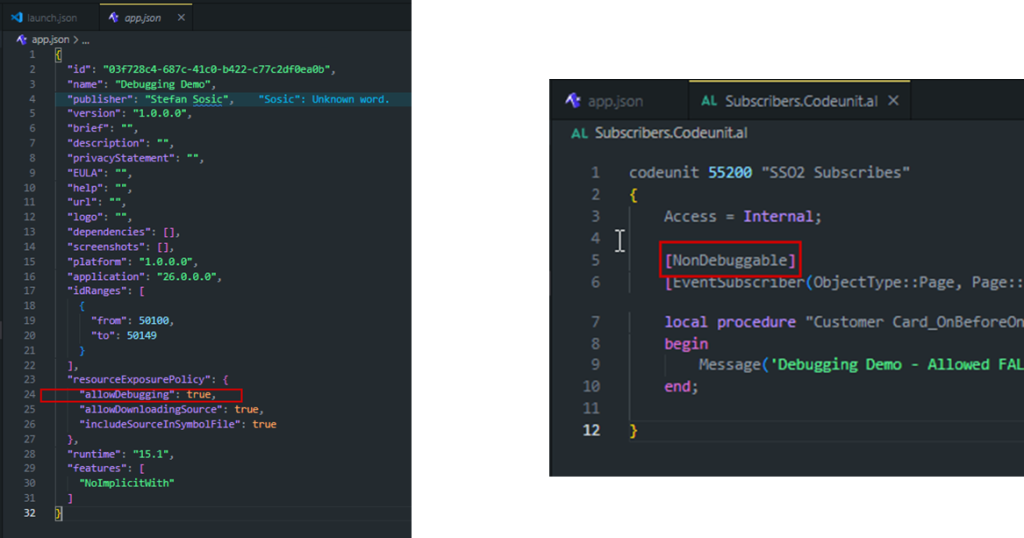

app.json with allowDebugging set to true beside a codeunit marked NonDebuggable

Development Application Considerations

When working with development applications, the applyToDevExtension property plays a crucial role in determining what code can not be debugged. This setting determines if resourceExposurePolicy applies even for the developer extension.

The resourceExposurePolicy block with applyToDevExtension set to true

Client Instance Management

The AL debugger has specific behaviors regarding client instances that developers should understand:

New Instance Per Session: The debugger launches a new client instance each time you press F5
Session Independence: If you close a debugging session and start a new one, it relies on a completely new client instance
Best Practice: Always close Web client instances when you finish a debugging session
No Pause Support: Pausing debugging sessions isn’t supported – you must either continue or stop

Mastering Breakpoints

Breakpoints are the foundation of effective debugging. AL debugging supports several types of breakpoints that cater to different debugging scenarios.

The VS Code breakpoints pane listing two AL breakpoints with their files and line numbers

Extension Breakpoints

These are your standard breakpoints set within your own extension code. They’re the most straightforward type and work exactly as you’d expect in any modern development environment.

External App Breakpoints

More interesting are breakpoints in external applications. Remember that these only work if the external code has debugging enabled through the allowDebugging flag.

A breakpoint set in an external app, its tooltip showing the dependency page path and line

Conditional Breakpoints

One of the most powerful debugging features is conditional breakpoints. These allow you to pause execution only when specific conditions are met, which is invaluable when debugging loops or code that executes frequently but only fails under certain circumstances.

The breakpoint context menu with Edit Condition selected

The inline condition box on a breakpoint, set to break when the expression evaluates to true

Advanced Break Configurations

Beyond traditional breakpoints, AL debugging offers specialized break configurations that can dramatically improve your debugging efficiency.

Break on Error

The breakOnError property is enabled by default (set to true) and automatically pauses execution whenever an error occurs. This is particularly useful for catching exceptions that might otherwise be handled silently or logged without stopping execution.

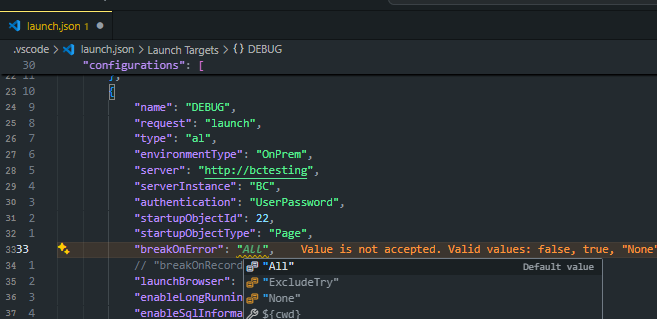

launch.json with breakOnError being set, IntelliSense offering All, ExcludeTry and None

Break on Record Changes

The breakOnRecordWrite property (default value false) is a powerful feature for database-related debugging. When enabled, it captures:

Insert operations
Modify operations
Delete operations

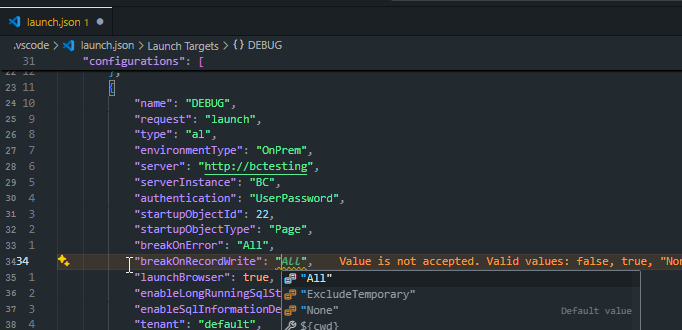

launch.json with breakOnRecordWrite being set, offering All, ExcludeTemporary and None

This is invaluable when tracking down unexpected database changes or investigating data integrity issues.

Handling Large Variable Values

When debugging complex objects or large datasets, you’ll encounter AL’s variable inspection limitations:

Size Limit: Variable values are limited to 1024 bytes in the debugger
Truncation: Values exceeding this limit are automatically truncated
Workaround: For larger values, consider logging to files or breaking down inspection into smaller parts

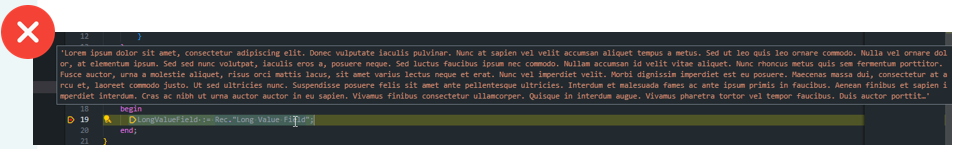

A debugger tooltip truncating a very long text field value mid-sentence

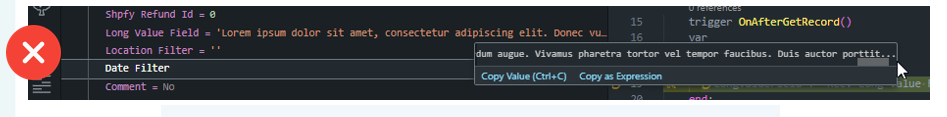

The variables pane offering Copy Value and Copy as Expression on the truncated value

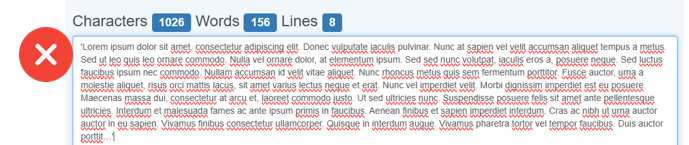

The copied value pasted into a counter, measuring 1026 characters over 156 words

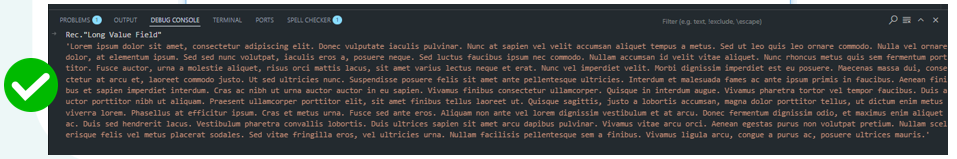

The full field value printed to the VS Code debug console instead, complete

Debug SQL Behavior

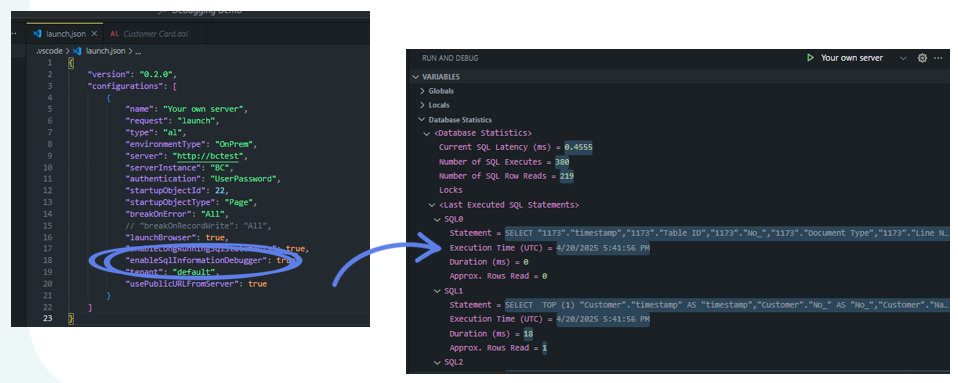

launch.json with enableSqlInformationDebugger enabled, beside the SQL statistics and executed statements it adds to the variables pane

Understanding database interaction is crucial for performance optimization and troubleshooting. AL debugging provides several SQL debugging capabilities:

Enable SQL Information

This feature provides detailed insights into database operations, including:

Database Statistics: Performance metrics and operation counts
Lock Information: Details about database locks and potential deadlocks
SQL Statement Statistics: Execution times, row counts, and query plans

These insights are invaluable for identifying performance bottlenecks and understanding how your AL code translates to database operations.

Essential Debugging Shortcuts

Efficient debugging relies heavily on keyboard shortcuts. While the specific shortcuts weren’t detailed in the presentation, mastering them will significantly speed up your debugging workflow. Focus on learning shortcuts for:

Step over (F10)
Step into (F11)
Step out (Shift+F11)
Continue (F5)
Stop debugging (Shift+F5)

Attach to Client Debugging

One of the most powerful debugging features is the ability to attach to running client sessions.

User Session Attachment

You can attach to:

Current user sessions
Specific sessions by Session ID
Sessions by User ID

This capability is particularly useful for debugging issues that only occur in specific user contexts or during particular business processes.

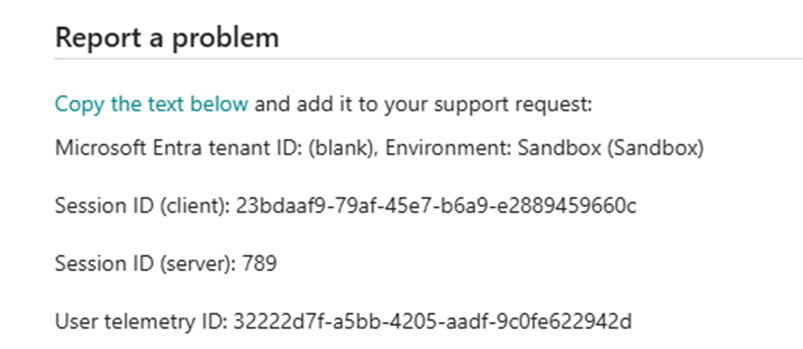

The Business Central Report a problem pane showing the client and server session IDs

launch.json IntelliSense offering the AL attach configurations for cloud sandbox and your own server

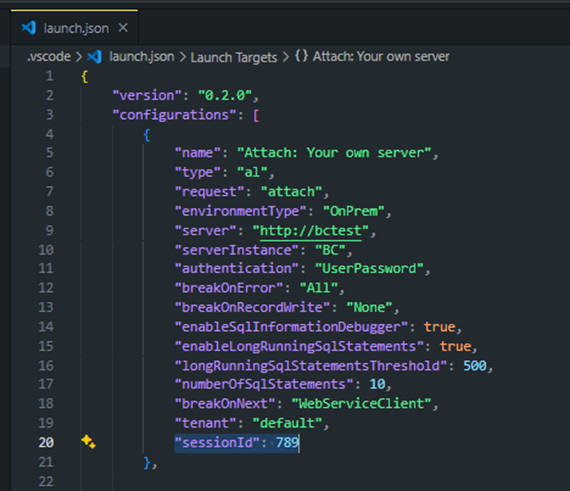

An attach configuration with sessionId set to the session taken from Report a problem

SaaS Permissions (Business Central 26.0+)

For SaaS environments running Business Central 26.0 and later, you’ll need the D365 Attach Debug permission to use client attachment features. This permission ensures that debugging capabilities are properly controlled in cloud environments.

Snapshot Debugging: Production-Ready Debugging

Snapshot debugging represents one of the most significant advances in AL debugging, particularly for production environments.

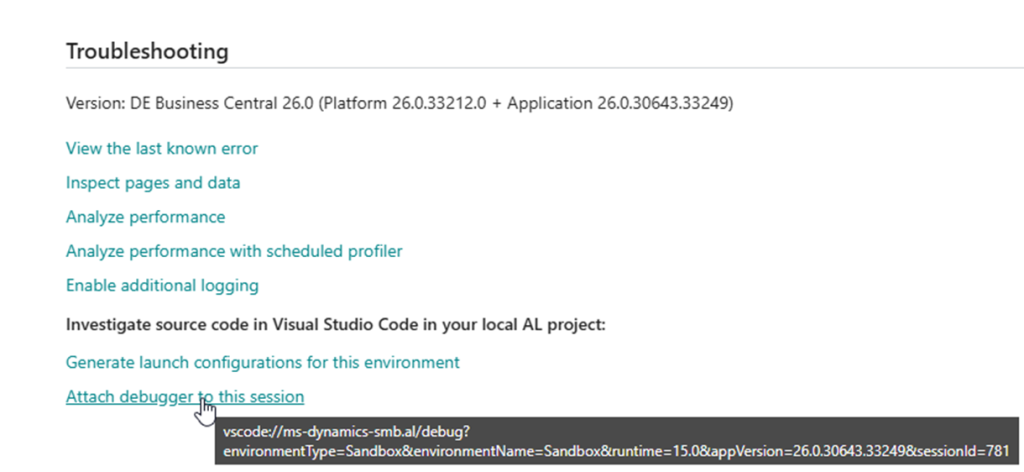

The Business Central troubleshooting page, with Attach debugger to this session and the vscode URL it opens

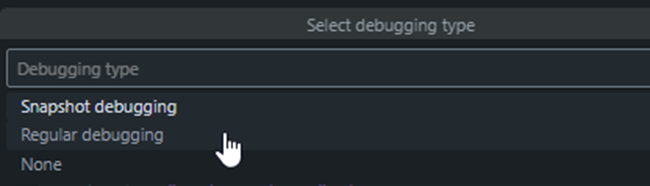

The Select debugging type prompt offering snapshot debugging, regular debugging or none

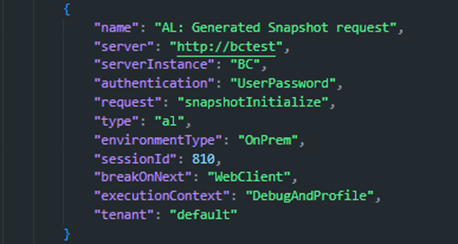

A generated snapshot request configuration, with snapshotInitialize and DebugAndProfile execution context

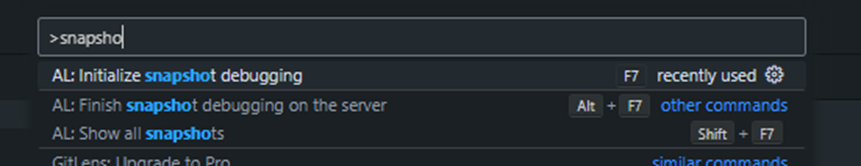

Command palette offering Initialize snapshot debugging, Finish snapshot debugging and Show all snapshots

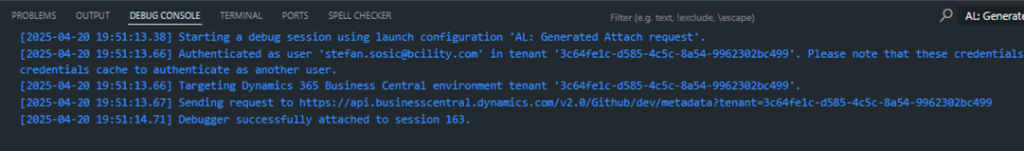

The debug console confirming the debugger attached to the session over the Business Central API

Perform actions that you want to record in a snapshot and perform Finish snapshot debugging.

The palette entry for initializing snapshot debugging, on F7

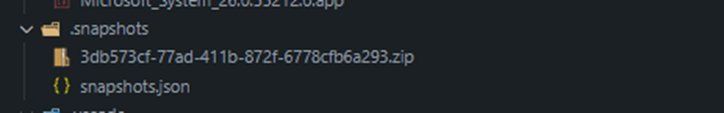

The .snapshots folder holding the recorded snapshot zip and snapshots.json

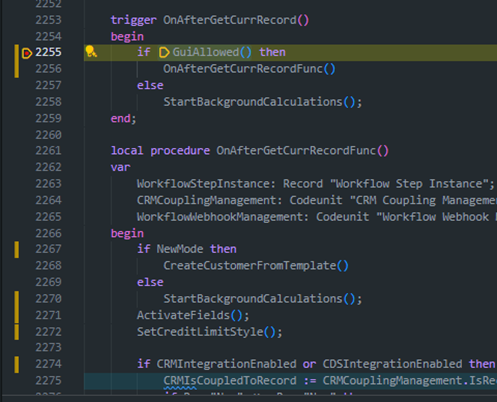

Base application code replayed from the snapshot, with the recorded lines marked in the gutter

Key Features

Record and Play: Capture debugging sessions that can be replayed offline
Production Safe: Designed specifically for production debugging scenarios
D365 Integration: Requires the D365 SNAPSHOT DEBUG permission

Limitations to Consider

Snapshot debugging comes with several important limitations:

ShowMyCode and NonDebuggable: Some code may not be accessible even in snapshot mode
Time Constraints:
- Must be started within 30 minutes of the triggering event
- Must finish within 10 minutes after starting
Size Limit: 100 MB limit to prevent issues with infinite loops or excessive recursion

Snapshot Profiler

Beyond debugging, snapshot profiling provides performance analysis capabilities:

Profile Generation: Creates detailed performance profiles of code execution
Multiple Views: Supports both top-down and bottom-up analysis views
Filtering: Allows filtering of results for focused analysis
Execution Tracking: Shows code execution even when debugging isn’t explicitly allowed

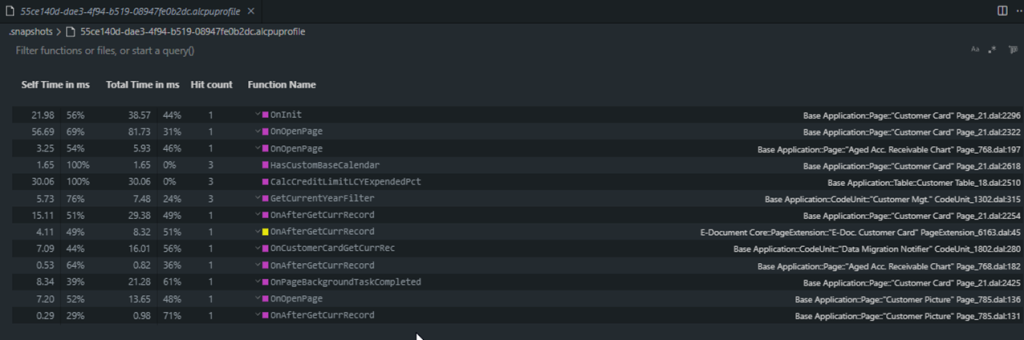

An alcpuprofile opened in VS Code, listing self time, total time, hit count and function per frame

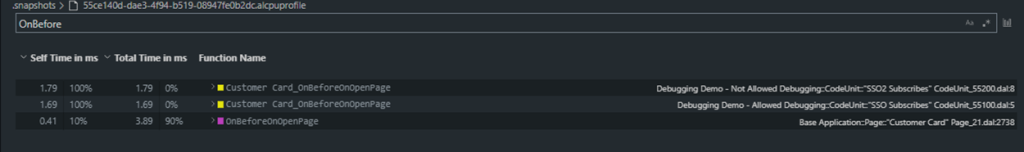

The same profile filtered to OnBefore, showing the subscribers that ran and their timings

Debugging Web Services

Modern Business Central implementations heavily rely on web services and APIs. AL debugging provides specific capabilities for web service debugging:

API Debugging Process

Attach to Session: Connect the debugger to the appropriate session
Trigger API Call: Execute the web service call that needs debugging
Step Through: Debug the server-side code as it processes the API request

This approach is invaluable for troubleshooting integration issues, API performance problems, or unexpected behavior in web service endpoints.

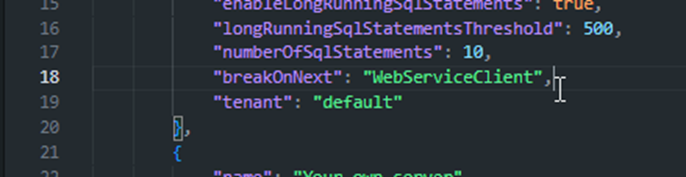

An attach configuration with breakOnNext set to WebServiceClient, to catch the next API call

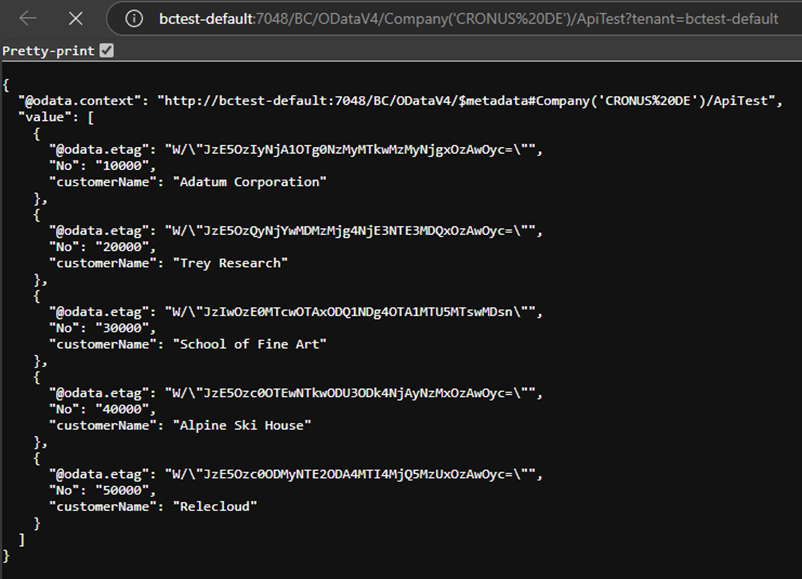

The OData API response in a browser, listing customers with their numbers and names

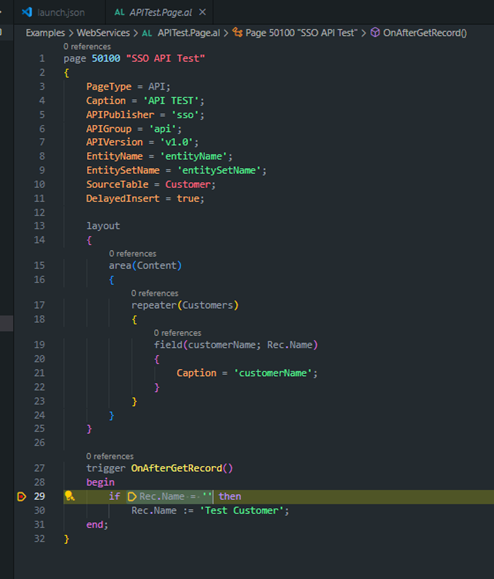

The API page AL source, stopped on a breakpoint inside its OnAfterGetRecord trigger

Production Debugging

Use snapshot debugging for production issues that can’t be reproduced in development
Respect the time limits and size constraints of snapshot debugging
Plan snapshot debugging sessions carefully due to the 30-minute startup window

Web Service Debugging

Test API debugging in development environments first
Use session attachment for debugging live web service calls
Monitor both client and server-side behavior during API calls

Conclusion

AL debugging in Business Central offers a rich set of tools that can dramatically improve your development and troubleshooting capabilities. From basic breakpoints to advanced snapshot debugging, understanding these features will make you a more effective AL developer.

The key to mastering AL debugging is understanding not just what tools are available, but when and how to use them effectively. Whether you’re debugging complex business logic, investigating performance issues, or troubleshooting production problems, the comprehensive debugging capabilities in AL provide the insights you need to build robust, reliable Business Central solutions.

Remember that debugging is not just about finding problems – it’s also about understanding how your code behaves, optimizing performance, and gaining deeper insights into the Business Central platform itself.
